DIY Jerk Boxes, a project for the dedicated in training…and DIY.
What you need to know
- Cost – Around $200 (My exact cost was $236, and I bought too much wood)
- Time – Probably two weekend days – if working alone (I had a partner)
- Difficulty – Medium (Not as hard as the DIY Prowler, but harder than the Plyometric Box)
Before we jump into how to build these hefty boxes, let’s talk about a few things first.
First…What is a jerk box?
After I finished this DIY project, one of my neighbors swung by my house and said, “What’s that you built?”, and I said they were jerk boxes, and she said, “Oh, so when someone is a jerk you put them in that box?”. Of course she was kidding, but on the same token, she didn’t fully understand the point of jerk boxes, so let me briefly explain.
Jerk boxes serve two primary purposes:
- Jerk boxes give you the ability to lift at different heights and positions of a specific lift, i.e. snatching from below the knee (and MANY other combinations)
- Jerk boxes also allow you to “jerk” heavy weight overhead and bring it back down to the boxes as opposed to the ground or your back. This allows for high rep jerks and heavy jerks without having to re-rack or risk hitting your spine.
Obviously, dependent on your style of training, they can be quite useful. While that is the primary purposes of jerk boxes, I have been using them for a lot more, and you can too.
What I’ve been using jerk boxes for:
- Basically everything…
- Squats and presses
- I have even used low boxes to act as my “safety bars” when going really heavy on squat.
- I have used them for heavy jerks
- High box jumps
- Dips
- And more!
Jerk boxes are pretty awesome.
Disclaimers:
Ok, last thing before we jump into building these bad boys…disclaimers:
First, I stand behind everything I build (not everything you build), and I fully trust the jerk boxes I have built for regular use in my garage gym. However, I also know who might be in the market for some DIY jerk boxes, so I would like to let those of you who don’t know me, know a little bit more, to assist in deciding whether these are the right plans for you.
- I am a one man shop, and my jerk boxes are used in a “one man shop”, I did not build these for commercial use and do not have any data as to how well they would hold up with a ton of people using them each and every single day.
- I am not a Weightlifter, in the Olympic lifting sense of the word. Basically all I mean by that is I cannot jerk 450 lb. over my head and so I do not know how well they would hold up to a weightlifter pounding insane weights on them daily.
- These things will take up quite a bit of space in your garage…you have been warned.
Ok, got the disclaimers out of the way. Honestly, these boxes are sturdy, I thoroughly tested them at 285 lb overhead and dropped many times on the boxes. I also did some lighter high rep stuff to make sure the tops could take a beating. So far, the jerk boxes are holding up great.
Alright! Let’s get started!

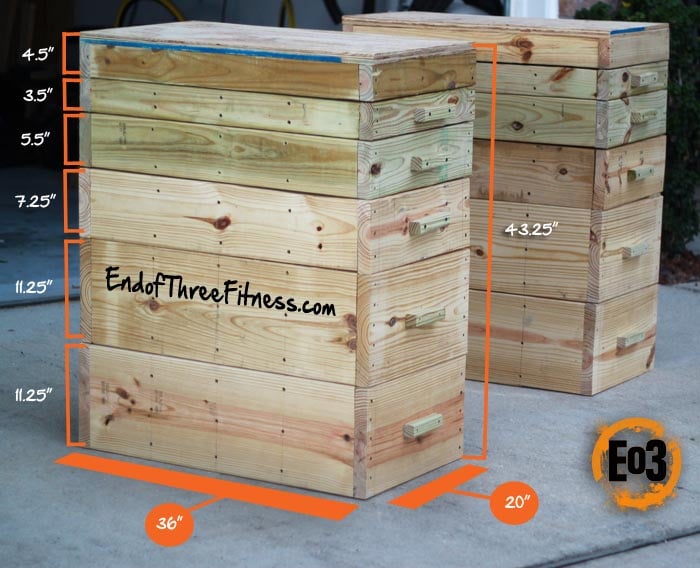

Step 0: End of Three Fitness DIY Jerk Boxes + Coffee
The jerk boxes consist of, in total, both stack of boxes:
- All boxes are 36″ x 20″ then heights are…
- 4 x 11.25″
- 2 x 7.25″
- 2 x 5.5″
- 2 x 3.5″
- 2 x 4.5″ Tops
This will put your boxes somewhere between 43.25″ and 44″ depending on how well they stack. Another thing to note is the 3.5″ box can be viewed as optional depending on how tall you are. If you are 5′ 11″ tall and above, build it. Below 5′ 11″ tall, it is optional.
Oh as for the “+ Coffee”, whatever source of artificial motivation you use…it may be time to load up on your favorite beverage; I recommend Bullet Proof Coffee :), this is quite a project.
Also, draw some sketches and plan it out. Make sure I am right 😉
Step 1: Buy DIY Jerk Box Material

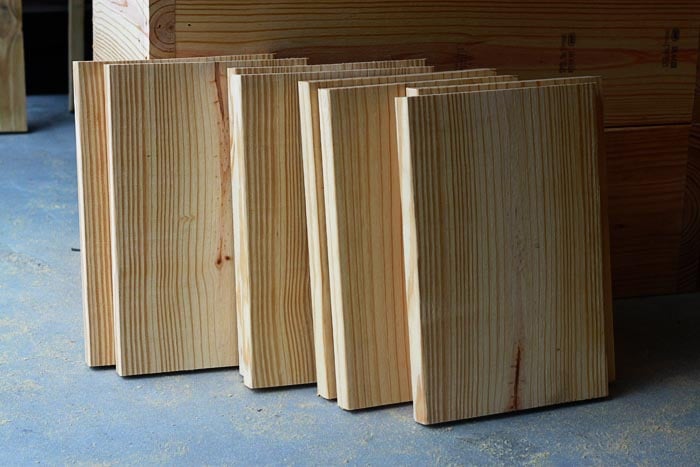

The picture above is a little more wood than you will actually need. I experimented a little bit and tried to make it the strongest structure while using the least amount of wood, A.K.A money. If I was short a board I apologize in advance for the trip back to the hardware store :), but, mathematically, this should be what you need.
Basically buy a crap-ton of wood:
- (1) Sheet of Plywood, 1/2″
- (6) 2 x 12 x 10
- (3) 2 x 8 x 10
- (3) 2 x 6 x 10
- (7) 2 x 4 x 10
- (1) 2 x 2 x 10
- (3) 1 x 4 x 10
- (3 Boxes) 3″ Drywall Screws
- (1 Box) 1.5″ Drywall Screws
Step 2: Start Building Your DIY Jerk Box Frames
***I am only going to explain how to do this one time, as each frame/box measurement and constructions will be the same, just using different wood size***
To clarify, you will follow steps 2-4 for all boxes; meaning all four of your 11.25″ boxes, both of your 7.25″ boxes, both of your 5.5″ boxes and both 3.5″ boxes. Step 5 explains how to build the tops.
Let’s begin.
Make the following cuts on the 10′ boards:
- Cut 2 x 33″ pieces
- Cut 2 x 20″ pieces
That will basically be your frame pieces.

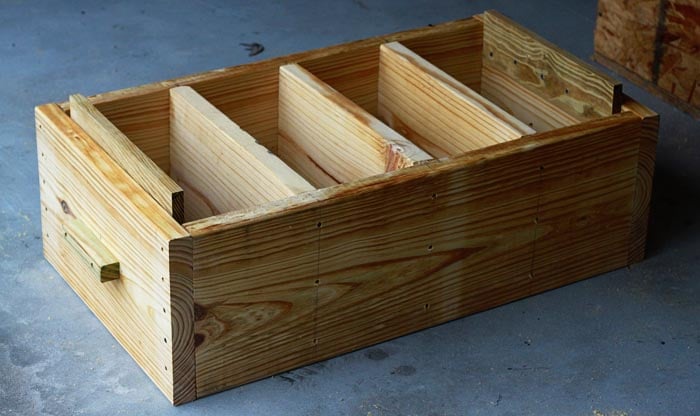

Put your 33″ pieces and 20″ pieces together using 3-5 (depending on board length – see main picture) 3″ screws. The 33″ pieces go on the inside of the 20″ pieces, which will make for a perfect 36″ x 20″ frame.

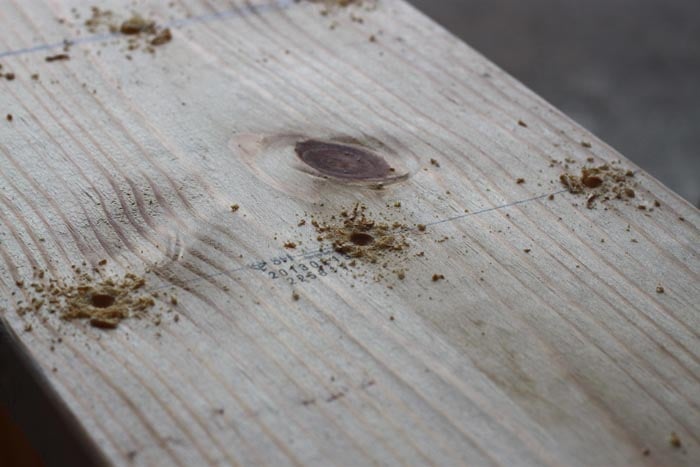

Note: Since 3″ screws can be hard to work with, all holes for this project were pre-drilled.
Now that you have your frame, you will need supports that will go on the inside of this frame.

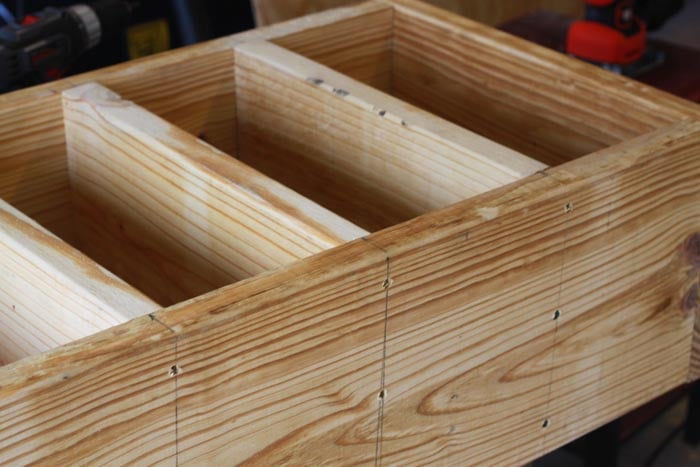

Step 3: Inserting Supports to your DIY Jerk Box Frames
More cuts:
- Cut 3 x 17″ pieces (per box) that will be the inside supports
**WOOD IS NOT PERFECT, so the inside pieces SHOULD all be 17″, but that is not always the case. You can easily measure, after you put your frame together, and if the inside of your frame is 16.75 inches, then cut 3 x 16.75 in pieces.**

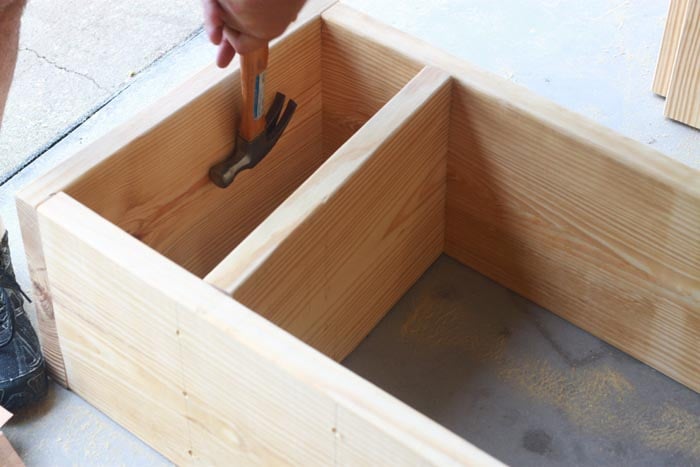

These inside support pieces will, and should be, a pretty tight fit, and a little wrangling may be in order, as seen in the hammer picture above.
The inside supports should be evenly spaced and placed:
- Measure a spot every 8.25″, that is where each of your 17″ pieces will go.
- 3 screws for every support
Step 4: Adding Lips and Handles to your DIY Jerk Boxes
The “lips” will hold the boxes from sliding around when you drop the weight on top of it. There will be two lips per box, except for the tops.
LIPS: Cut and attach:
- Cut 2 x 15″ lips for each box; using the 1x4x10 wood
- Attach with 5-7, 1.5″ screws

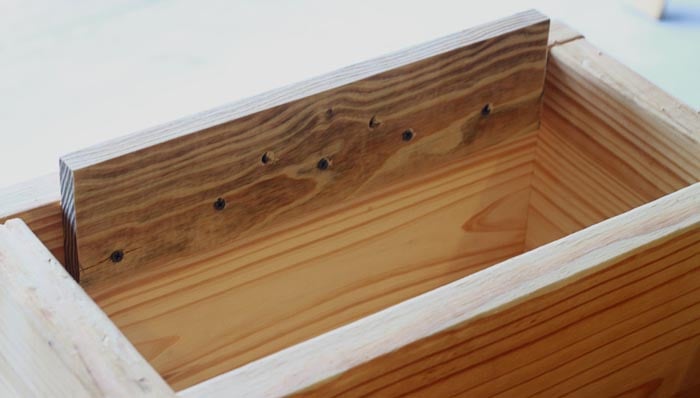

- **Make sure yo alternate in a zig zag pattern like above (two screws). If you put all the screws in a straight line on the lip, it will move around too much.

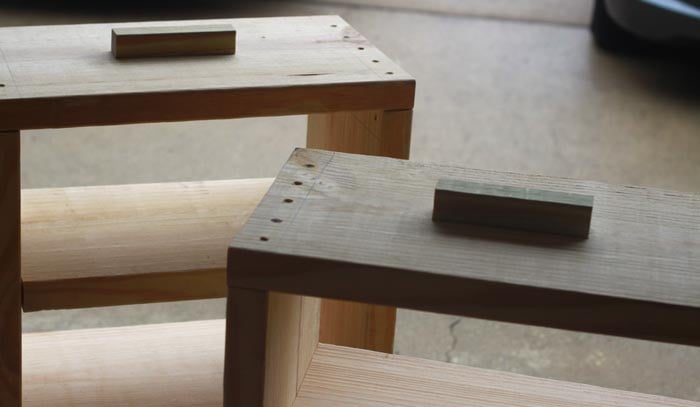

HANDLES: Cut and attach:
- Cut 2 x 6″ handles for each box; using 2x2x10 wood
- Attach with 2, 3″ screws
- Measure to be in center of the box.
BONUS TIPS:
Here are a few tips that should help you while you are building boxes:

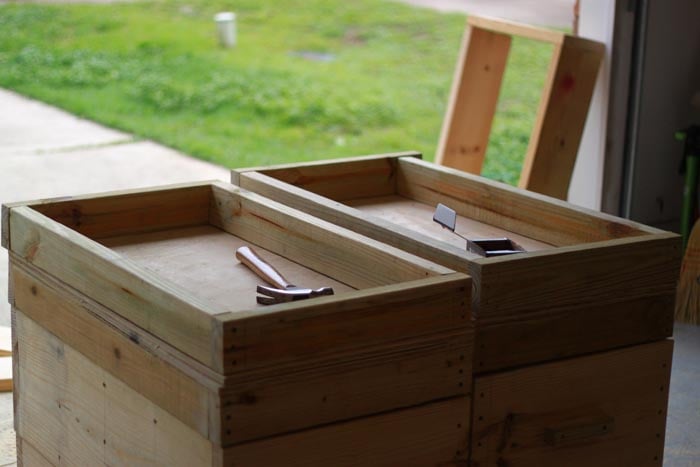

- Build frames on top of frames. As I stated earlier, wood is not perfect. If you build frames on top of other frames they will fit snuggly with very little gaps. If you build them on the perfectly level ground they will not fit as well.
- Pre-drill all holes
- Build one entire box – lips, handles and all – see how it all works; then you can pretty much start an assembly line process for the rest of your boxes. It gets a lot easier and faster after you fully understand how one box works.

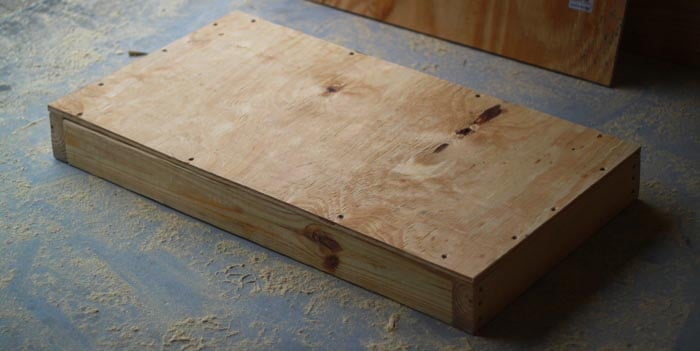

Step 5: Building the Tops to your Jerk Boxes

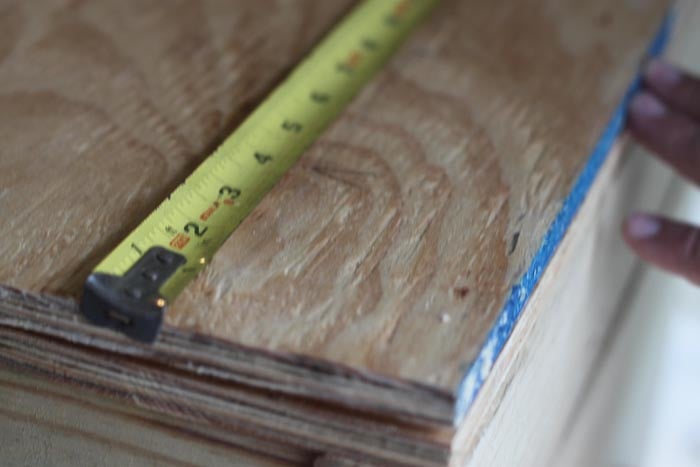

The End of Three Fitness DIY Jerk Box tops are double plywood, 2×4 supported tops. You will see a lot of jerk boxes with rubber padding on top to help lessen the amount of noise and to help absorb some of the impact. We decided to skip the rubber padding, as it is not necessary and will only add to your costs, but the choice is yours.
The top is made out of 2 x 4’s and plywood.
For ONE top you will need:
- 2 x 33″ 2×4’s
- 2 x 20″ 2×4’s
Put those pieces together like previous frames
Cut plywood:
- 2 x 36″ x 20″
- Attach one sheet of plywood to top of the frame
Cut 2 x 4 supports (will go inside frame):
- 4 x 30″ 2×4’s
The inside supports need to be evenly placed like in the picture above. There will also need to be a 1.5″ gap on each short side of the tops. This will make the “lips” from the other boxes fit easily to the tops.
Complicated part of project: Put on your thinking caps!!

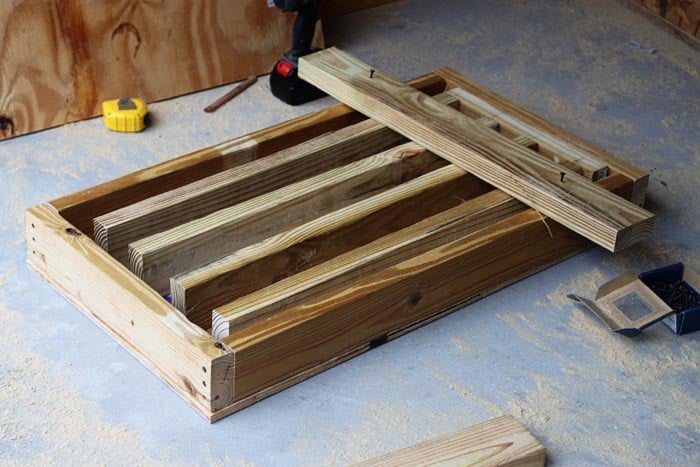

Now, you will need to evenly add the 4 x 30″ pieces. What we did was evenly place all the 2 x 4’s. We then took an extra 2 x 4 and lightly drilled it in the box to hold all 4 pieces in place (shown in picture above). After that, just stand the box up and drill 1.5″ screws through the first sheet of plywood into the 2 x 4’s. Your structure is almost complete. After all 30″ 2×4’s are secure, add the 2nd sheet of 36″x20″ plywood to the top of the other piece of plywood.
You now have a completed top.
Now, build another one.
That’s about it for this project. It is a lot of cutting and screwing, but fairly simple.

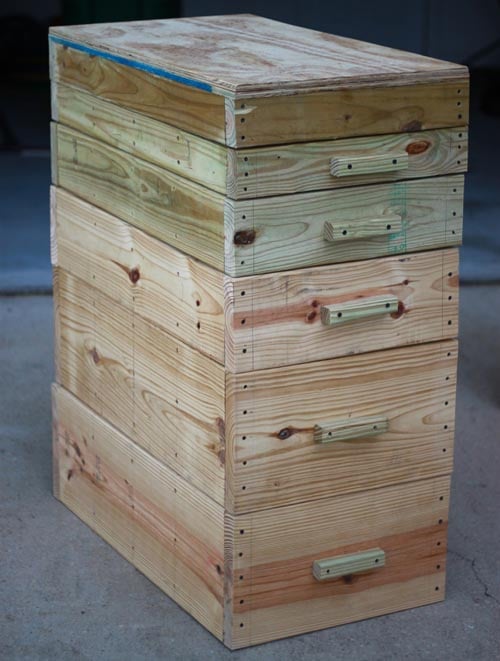

Completed Stack
Other Considerations & Possible Issues:
- I did not add wood-stops to the top of my boxes. My boxes are pretty level, and the weight doesn’t roll of the box when I place it on top. However, for safety reasons, or if your garage has a slight grade, just screw some pieces one the top, both front and back and that problem will be taken care of.
- I thought this would be a problem because I have heard of others having this problem. Some people say their jerk boxes, “bounce all over the place” when they slam heavy weights on top of it. I am not having that problem at all. Our “lips” keep the boxes from moving front to back, but I haven’t even really had side to side problems. If your boxes do not end up as level as you would have liked and they do bounce side to side. Just add more lips to the sides just like you did to the front and back. Problem solved…if it is a problem.
Good luck in building your Jerk boxes!
If you need help with anything, add it to the comments and I will do my best…BUT…don’t be the guy who didn’t read the entire post and start asking questions that have already been addressed.
-Jerred
