How To Build A Mini Deadlift Jack

How To Build A Mini Deadlift Jack

By Jerred Moon Get free updates of new posts here

Mini Deadlift Jack in action

Today, let’s build a DIY mini deadlift jack!

You know what’s not fair? The fact that when you bench press, strict press, squat and many other lifts, your barbell rests nicely on a rack, making removing weight and adding weight a breeze. What about the other lifts? You know, the ones that start from the ground?  Why does it have to be so hard to load and unload the barbell; it’s not fair.

Ok, ok, it’s either not fair or we are all inherently lazy – even when working out. Either way, let’s even the playing field with these from-the-ground lifts!

Please welcome the mini deadlift jack to your DIY arsenal!

I first saw this product at Rogue Fitness (check it out here) and I thought it was cool, but I couldn’t justify spending $60+ to make loading and unloading a bar a little bit easier. But I was at home depot the other day researching the Jerk Box DIY project (coming soon) and I ended up in the plumbing section, started looking at some pipe and within 10 minutes I had pretty much assembled this project in the store…too easy, so I have to share it.

It’s up to you to decide if making your loading and unloading of a barbell a little bit easier is worth $30, but it’s a fun and easy project. I have found this little tool very useful, especially with really heavy deadlifts. Well, enough chit chat, let’s get started.

What you need to know

  • Time – 10 minutes
  • Cost – Around $30
  • Difficulty – EASY. If you can’t do this one, there is no hope for you.

Step 1: Buy Mini Deadlift Jack Supplies

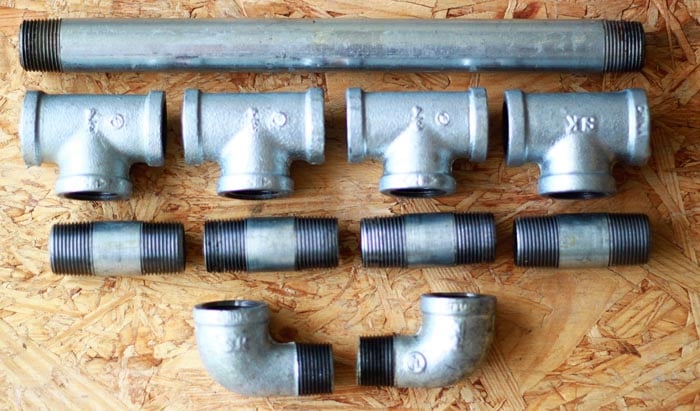

Mini Deadlift Jack Supplies

  • 1 – 3/4″ x 12″ galvanized pipe
  • 4 – 3/4″ galvanized TEE pieces
  • 4 – 3/4″ x 2.5″ galvanized pipe
  • 2 – 3/4″ elbow joints

*Optional: Duct tape (you probably already have this)

Duct tape…This is optional because the mini deadlift jack is 100% useable without the application of any sort of tape. However, it doesn’t take a rocket scientist to realize that metal rubbing on metal is not usually a good thing i.e. why we have oil in our cars… So, overtime, without the tape, the mini deadlift jack will rub, scuff and scratch your barbell. It isn’t a huge problem, but as you know I have a very serious relationship with my barbell, and want to keep it looking fresh.

Step 2: Assemble Main Mini Deadlift Jack Structure

After writing this, I realize the text can be more confusing than necessary. Just look at the pictures, it is extremely simple. Putting it into words makes it more complex than it seems.

Complete the following:

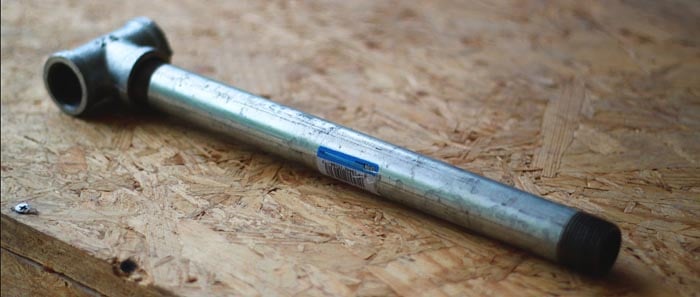

Connect your 12″ piece into a Tee piece

Step 1_small

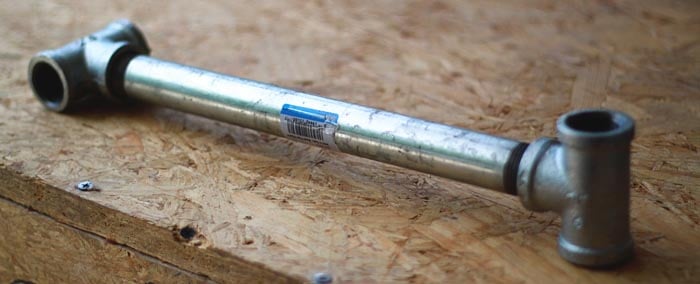

Connect another Tee piece on opposite end of the 12″ pipe, but top tee hole facing up and down

Step 2_Small

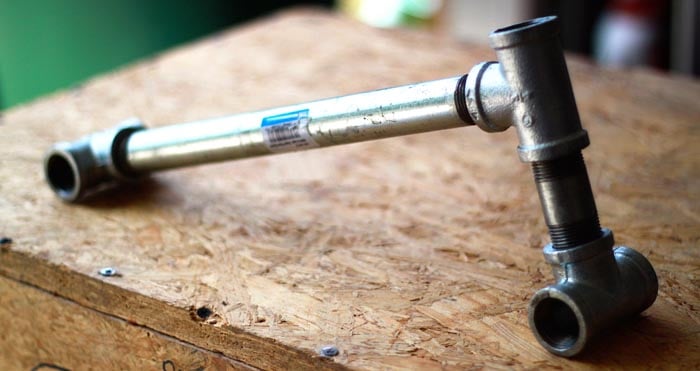

Connect a 2.5″ piece into the previously stated tee piece, pointed downward, and connect your final tee piece on the end of your 2.5″ piece and make sure that it is parallel to the tee piece at the end of the mini deadlift jack. If they are not perfectly parallel, and tight, it will make for a wobbly mini deadlift jack.

Step 3_small

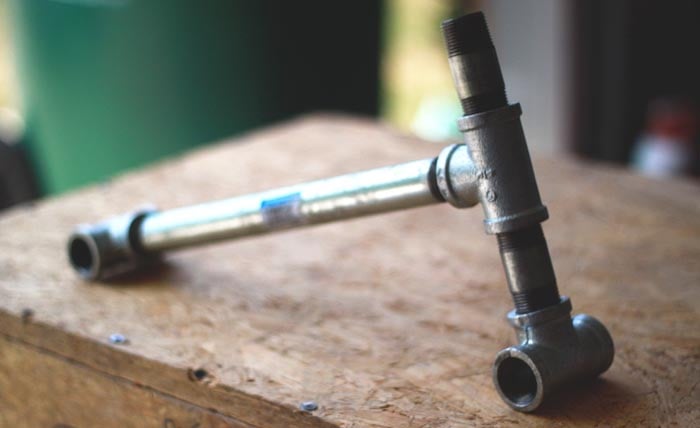

Add a 2.5″ piece to the top of the upward facing tee piece.

Step 4_small

Now we have the main structure for the mini deadlift jack. Make sure all of the pieces are extremely tight. Also, I’ll say it again, make sure the two tee pieces that are touching the ground are very tight and perfectly level with each other.

banner-pop-under-new

Step 3: Construct the Mini Deadlift Jack Weight holder

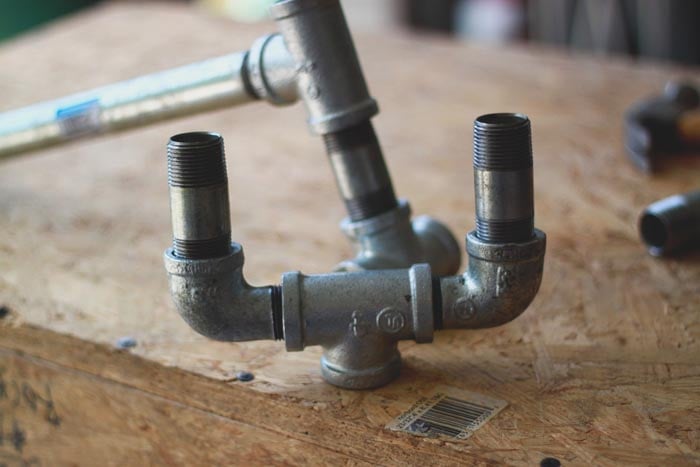

Very easy step here. Take a tee piece and put both elbow joints so that they are tight and parallel. Next, put your last 2.5″ pieces and screw them into the elbow joints.

Step 5_Small

Simply screw this piece into the mini deadlift jack main structure and you are pretty much done. If you want to add the tape it is easiest to add the tape before you screw it onto the mini deadlift main structure. That will leave you with a finished product as seen below.

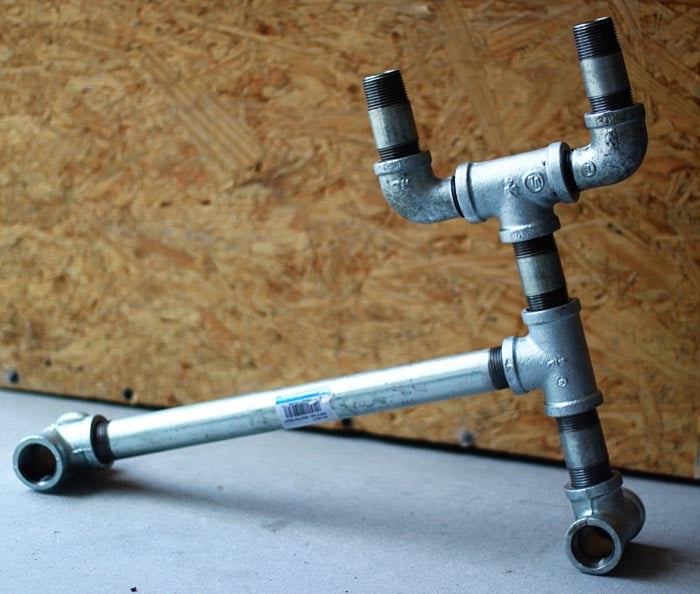

Mini Deadlift Jack Final

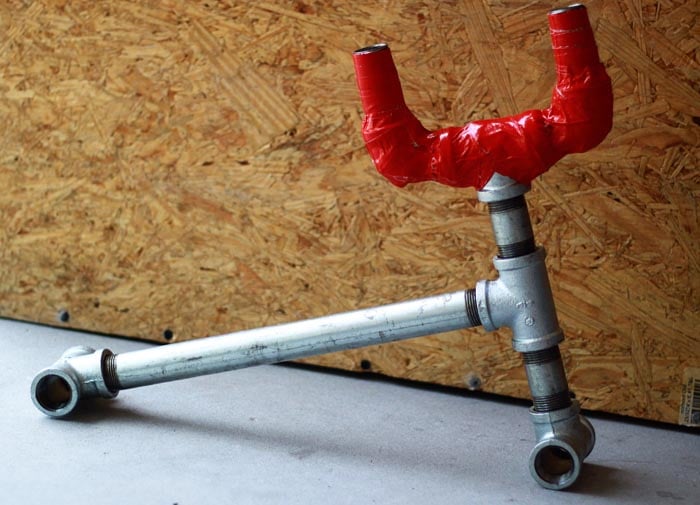

Mini Deadlift Jack Complete

Step 4: Use your mini deadlift jack!

It is very easy to use, but here are some things to know before you try it out.

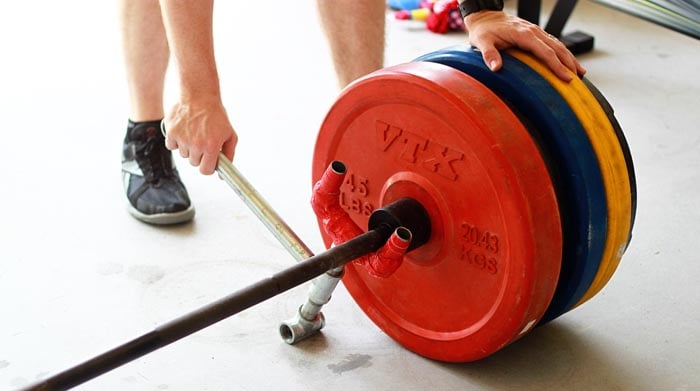

Place the mini deadlift jack firmly on the bar where the elbow joint and 2.5″ piece connect, and on the ground.

In Action 1_Small

Carefully apply force to the lever and do not get your finger crushed under this thing!! I normally guide the barbell with my other hand by putting it on the sleeve of the barbell, just to make sure there is no catastrophic failure, so far so good.

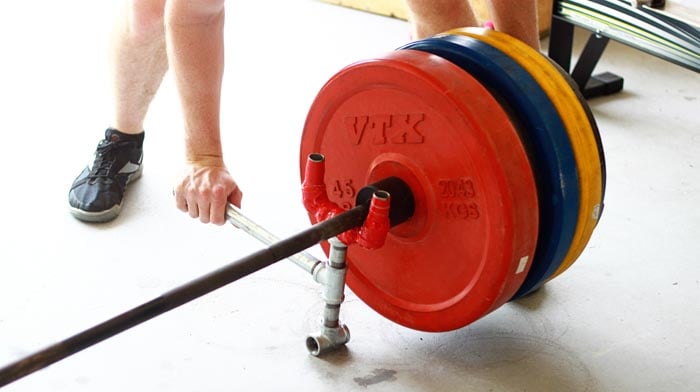

*Note: Since there is such a wide gap in the barbell holding piece of our mini deadlift jack, the bar will slide from the top to the bottom. Don’t be alarmed! This is where the duct tape really comes in handy. It slows the bar from sliding and will make sure the bar is safe 🙂

In Action 2_small

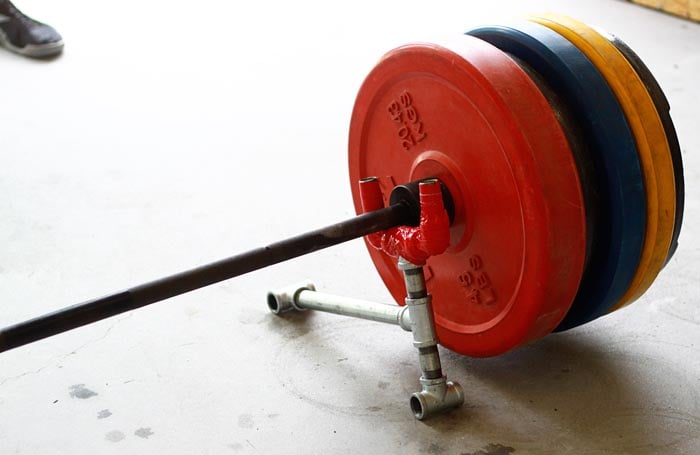

Lastly, even up the score with those racked position lifts!! Easily add and remove your weight 🙂

In Action 3_Small

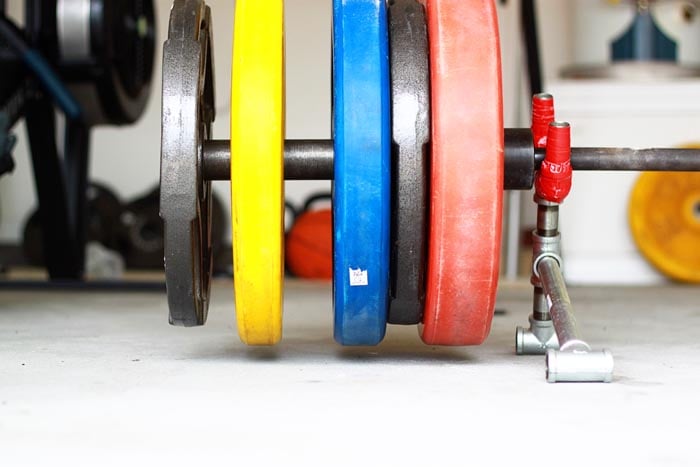

There should be just enough clearance, no matter if you have bumper plates or iron.

In Action 4_Small

As always, if you need help with this project add it to the comments.

Happy lifting (from the ground)!

-Jerred

P.S. BEFORE you add it to the comments, or if you just want an alternative. Yes, rolling your weight onto a 2.5 lb plate works well for racking and unracking your weight too. But it’s not near as cool.
